Specifications
Features |

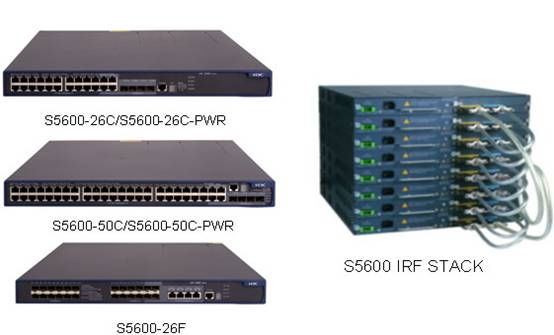

S5600 |
S5600 |
S5600 |
S5600 |
S5600 |
|
Fixed port |
24 10/100/1000 Base-T ports, 4 1000 BASE-X SFP (Combo) ports, and 2
dedicate high speed stacking ports |
48 10/100/1000 Base-T, 4 1000 BASE-X SFP (Combo) ports, and 2 dedicate
high speed stacking ports |
24 1000 Base-X SFP ports, 4 10/100/1000 BASE-T(Combo) , and 2 dedicate
high speed stacking ports |
|||
Extended slot |
1 |
1 |
1 |
1 |
1 |
|
Extended module |
8 ports 1000 Base-X SFP module 1 port Xenpak 10GE Module 2 ports XFP 10GE module |
|||||
Performance |
||||||
Wire speed L2/L3 switching |
Port Switch capacity: 88Gbps Throughput: 65.47Mpps |
Port Switch capacity: 136Gbps Throughput: 101.18Mpps |
Port Switch capacity: 88Gbps Throughput: 65.47Mpps |
|||
Switching Fabric |
192Gbps |
240Gbps |
192Gbps |
|||
Flash |
|
|
|
|
|
|
POE |
No |
Yes |
No |
Yes |
No |
|
Switching mode |
Store and forward |
|||||
Forwarding Latency |
<40µs |
|||||
SDRAM |
|
|||||
Layer 2 feature |
||||||
MAC address table |
Up to 16K MAC addresses Support blackhole MAC addresses Support setting the maximum number of MAC addresses that can be learned
at a port |
|||||
VLAN |
Support Port-based VLAN (4k VLANs) Protocol-based VLAN Voice VLAN GVRP QinQ, Selective QinQ VLAN Mapping |
|||||
Stack |
IRF(DDM, DRR, DLA) Stack up to 8 units in one stacking group |
|||||
Link aggregation |
Support LACP Support manual Link aggregation Up to 8 GE or 4 10GE ports in each aggregation group Up to 32 aggregation groups |
|||||
Mirroring |
Many-to-one port mirroring (multiple monitored ports to one monitor
port, N:1) Traffic mirroring |
|||||
STP/RSTP/MSTP |
IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol instances (MSTP) BPDU Tunnel |
|||||
Flow control |
IEEE 802.3x (full duplex) Port rate ratio(1% granularity) and PPS based suppression |
|||||
Layer 3 feature |
||||||
IP routing |
Support Static route Support RIPv1/v2, OSPF v2 , BGP4 Support ECMP Support VRRP |
|||||
Multicast |
Support IGMP v1/v2 Support IGMP snooping Support MVR Support PIM-DM/ PIM-SM/ MSDP |
|||||
DHCP |
DHCP Server DHCP Snooping DHCP Relay DHCP Client DHCP Snooping Option82/DHCP Relay Option82 |
|||||
Convergence |
||||||
QoS |
Support bi-directional port rate-limiting, Committed Access Rate (CAR) Eight output queues on each port Support three scheduling modes: SP (Strict Priority), WRR (Weighted
Round Robin), SP + WRR Support packet redirection. Support re-labeling the 802.1p and DSCP priorities of a packet. |
|||||
ACL |
L2~L4 Packet filter providing filtering based on source/destination MAC
address, source/destination IP address, port, protocol, VLAN, VLAN range, MAC
address range, or invalid frame Support time range-based ACL |
|||||
Security |
||||||
Security Feature |
Support Centralized MAC address authentication Support MAC address black hole Support MAC
Address Learning Limit Prevent unauthorized access to the network by binding of MAC, IP and
PORT Support IP source check Support SSH V2 Support EAD (endpoint admission defense) Support IEEE 802.1X user authentication Guest VLAN Support HWTACACS authentication |
|||||
Management/ Maintenance |
||||||
Management and Maintenance |
Support CLI (Command Line Interface), console port , Telnet
configuration mode Support Remote configuration via modem dial-up Support System configuration with SNMP v1/v2 /v3 Support HGMP V2 Support RMON (Remote Monitoring) v1/v2/v3/v9 groups of MIBs Support H Detailed alarm/debug information output Support Ping, Tracert, HWping
Support remote maintenance via Telnet Modems and SSH v2 Support System log Hierarchical alarm management and alarm filtering Support DLDP (Device Link Detection Protocol) Saving debugging information into Flash Loopback detection on ports Support VCT(Virtual Cable Test) |
|||||
Hardware configuration |
||||||
Outline dimension |
|
|||||
Weight |
|
|
|
|||
Power supply |
Input voltage |
AC: Rated voltage: 100V to 240V, 50 Hz to 60Hz Maximum tolerance:90V to 264V, 50 Hz to 60Hz DC: Rated voltage: -48V to -60V Maximum tolerance: -36V to -72V |
||||
|
The S5600 DC input of the PoE power module: Rated voltage: –53.5 V Max voltage range: –52 to–55 V |
|||||
RPS power |
Supported |
|||||
Maximum power consumption |
S5600 S5600 S5600 S5600 l Dissipated power:170w l POE power:370w S5600 l Dissipated power:190w l POE power:370w S5600 l Dissipated power:230w l POE power:740w S5600 l Dissipated power:270w l POE power:370w |
|||||
MTBF (Years) |
24.21 |
24.21 |
21.30 |
21.30 |
23.89 |
|
Noise parameter |
S5600 S5600 S5600 S5600 S5600 |
|||||
MTTR (hours) |
<2 |
<2 |
<2 |
<2 |
<2 |
|
Environment |
Operation temperature: Storage temperature: Operating humidity: 5% to 85% non-condensing Relative humidity: 10% ~ 90%, non-condensing |
Industry standards
support
l Ethernet Protocol
-IEEE802.3 10BASE-T Ethernet
-IEEE802.3u 100BASE-TX Fast Ethernet
-IEEE802.1Q Virtual bridged Local Area Network (VLAN)
-IEEE 802.1P QoS
-IEEE 802.1D-1998 Priority and Dynamic Multicast Filtering
-IEEE802.3x full duplex / flow control
-IEEE802.3p four levels of priority
-IEEE 802.1w Rapid Reconfiguration( Spanning Tree )
-IEEE802.1D Spanning Tree
-IEEE802.1S MSTP
-IEEE 802.1X Port-based authentication
-IEEE 802.1Z 1000BaseX Gigabit Ethernet
-IEEE
-IEEE
l Administration Protocol
RFC 1812 (IPv4)
RFC 826 (ARP)
RFC 959 (FTP)
RFC 783 (TFTP)
RFC 768 (UDP)
RFC 791 (IP)
RFC 792 (ICMP)
RFC 793 (TCP)
RFC 2622 (Routing policy)
RFC 2474 (Diffserv)
RFC 2131 (DHCP)
RFC 1058 (RIPv1)
RFC 2338 (VRRP)
RFC1723 (RIPv2)
RFC 2328 (OSPF v2)
RFC 3101 (NSSA)
RFC 1587 (OSPF NSSA option)
RFC 2370 (OSPF Opaque LSA Option)
RFC 1765 (OSPF Database Overflow)
RFC 2362 (PIM-SM)
RFC 1112 (IGMPv1)
RFC 2236 (IGMPv2)
RFC 2138 (RADIUS Authentication)
RFC 2139 (RADIUS Accounting)
RFC 2267 (Network Ingress Filtering)
RFC 1157 (SNMP)
RFC 1902 (SNMPv2)
RFC854 (Telnet)
RFC896 (Congestion control in IP/TCP network)
RFC925 (Multi-LAN ARP/Proxy ARP)
RFC1122 (Requirements for Internet Hosts)
RFC1156 (TCP/IP MIB)
RFC1212 (Concise MIB definitions)
RFC1213 (MIB for Network Management of TCP/IP based
internets (MIB II))
RFC1757 (RMON (groups 1 2 3 and 9))
RFC1901 (Community based SNMPv2)
RFC2573 (SNMPv3 Applications)
RFC2576 (Coexistence between SNMP V1, V2, V3)
RFC2597 (Assured Forwarding PHB group (partial
support))
RFC2618 (Radius Authentication Client MIB)
RFC2620 (Radius Accounting MIB)
RFC2819 (Remote Network Monitoring MIB (group 1,2,3,9))
RFC2865 (Remote Authentication Dial In User Service)
RFC2869bis (Radius Support for Extensible
Authentication Protocol (EAP))
RFC2932IP (Multicast Routing MIB)
RFC3046 (DHCP/BootP Relay)
Safety and Compliance
l Emissions / Agency Approvals
CISPR 22 Class A
FCC Part 15 Class A
EN 55022 Class A
ICES -003 Class A
VCCI Class A
AS/NZS 3548 Class A
EN 6
EN 6
l Immunity
Product conforms to:
EN 55024: 1998
EN 6
EN 6
EN 6
EN 6
EN 6
EN 6
l Safety Agency Certifications
UL 60950 3rd ed.
IEC 60950: 1999, corr. Feb. 2000; all national
deviations
EN 60950: 2000, ZB and ZC deviations
CSA 22.2 No. 950 3rd ed., 1995
AS/NZS 60950:2000,
