VGA BALUNS
|
|
The VGA baluns
offers an ideal link between data output equipment and VGA monitors using
4-pair Cat.5e shielded twisted-pair cabling, eliminating the cost and
clutter associated with heavier VGA cables. With the VGA baluns at both the transmission and receiving ends of
your setup, you can enjoy an impressive transmission distance of up to 450ft (137m) and a clear 640x480
pixel resolution.
|
|

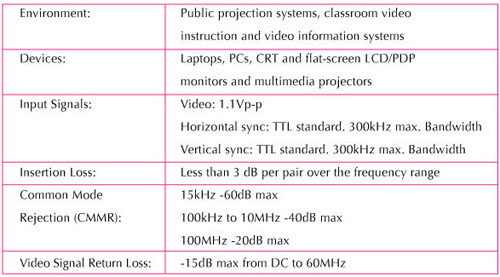

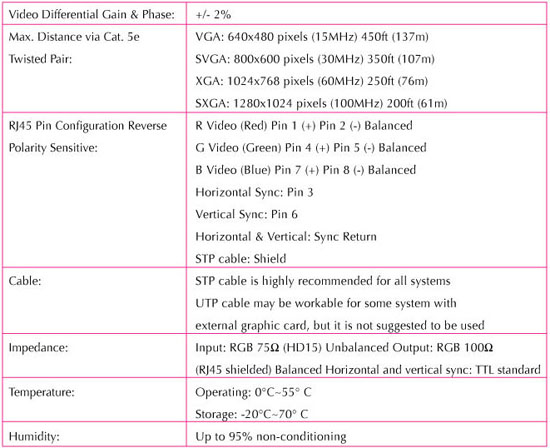

SPECIFICATIONS
|
|
|
|
|
|
|
|
|
|
VGA BALUNS
|
|
|
Ordering Information
|
|
Part
No.
|
|
Description
|
|
-HC-VB-H15FN8S
|
|
STP RJ45 Jack To Female HD15
Connector, Monitor End.
|
|
HC-VB-H15MN8S-C
|
|
STP RJ45 Jack To Male HD15 6” Cord, PC End.
|
|
|
|
|

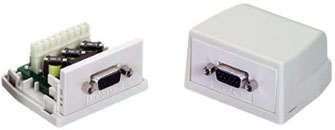

VGA
BOXES
|
|
|
|
Ordering Information
|
|
Part
No.
|
|
Description
|
|
-HC-3004-1-H15FNP
|
|
Box W/HD15 Module, Nickel-Plated,
PC End.
|
|
HC-3004-1-H15FNM
|
|
Box W/HD15 Module, Nickel-Plated,
Monitor End.
|
|
Note: Patented (Taiwan).
|
|
|
|
|

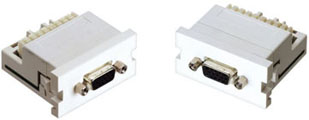

VGA MODULES
|
|
|
|
Ordering Information
|
|
Part
No.
|
|
Description
|
|
-HC-MC-H15FNP
|
|
HD15 Module, Nickel-Plated, PC
End.
|
|
HC-MC-H15FNM
|
|
HD15 Module, Nickel-Plated,
Monitor End.
|
|
Note: Patented (Taiwan).
|
|
